Allocation

Allocation API 用于创建，查看以及删除服务。

授权

使用 Basic Authorization 来进行鉴权 (推荐服务器端程序使用). 步骤如下:

在 UOS 网站上获取当前需要使用的 UOS APP 的 AppId 和 AppServiceSecret
注：此处 AppId 和 AppServiceSecret，可在 UOS 网站上获取
在请求任意 API 的 Request Header 中增加 Header:
- Authorization: Basic base64(appId:appServiceSecret)

示例代码

# C# 使用示例 - Basic 授权方式
using System;
using System.Collections.Generic;
using System.Net.Http;
using System.Security.Cryptography;
using System.Text;
using System.Threading.Tasks;
using Newtonsoft.Json;

class Program
{
    private static string GetBasicAuthorization(string appId, string appServiceSecret)
    {
        string credentials = $"{appId}:{appServiceSecret}";
        byte[] credentialsBytes = Encoding.UTF8.GetBytes(credentials);
        string encodedCredentials = Convert.ToBase64String(credentialsBytes);
        return $"Basic {encodedCredentials}";
    }

    public static async Task Main(string[] args)
    {
        using (HttpClient client = new HttpClient())
        {
            // 使用项目的 APP_ID, APP_SERVICE_SECRET 获取 headers
            client.DefaultRequestHeaders.Add("Authorization", GetBasicAuthorization(APP_ID, APP_SERVICE_SECRET));

            // 以get方法为例，替换 url 为你需要请求的 url
            HttpResponseMessage response = await client.GetAsync(url);
            response.EnsureSuccessStatusCode();

           // 其他处理……
        }
    }
}

Python

# Python 使用示例 - Basic 授权方式
import base64
import requests

def get_basic_authorization(app_id, app_service_secret):
  """ 获取basic auth的Header """
  credentials = f'{app_id}:{app_service_secret}'
  encoded_credentials = base64.b64encode(credentials.encode("utf-8")).decode("utf-8")
  return {'Authorization': f'Basic {encoded_credentials}'}

# 使用 APP_ID, APP_SERVICE_SECRET 获取Basic Token Header
headers = get_basic_authorization(APP_ID, APP_SERVICE_SECRET)
# 以get方法为例，替换 url 为你需要请求的 url
response = requests.get(url, headers=headers)

JavaScript

// JavaScript 使用示例 - Basic 授权方式
const axios = require('axios');

function getBasicAuthorization(appId, appServiceSecret) {
  /** 获取 basic auth 的 Header */
  const credentials = `${appId}:${appServiceSecret}`;
  const encodedCredentials = btoa(credentials);
  return { 'Authorization': `Basic ${encodedCredentials}` };
}

// 使用 APP_ID, APP_SERVICE_SECRET 获取Basic Token Header
const headers = getBasicAuthorization(APP_ID, APP_SERVICE_SECRET);
// 以get方法为例，替换 url 为你需要请求的 url
const response = await axios.get(url, { headers });

// Go 使用示例 - Basic 授权方式
import (
    "bytes"
    "encoding/base64"
    "encoding/json"
    "fmt"
    "io"
    "net/http"
)

func GetBasicAuthorization(appID, appServiceSecret string) string {
    credentials := appID + ":" + appServiceSecret
    encodedCredentials := base64.StdEncoding.EncodeToString([]byte(credentials))
    return "Basic " + encodedCredentials
}


func main() {
    // 以get方法为例，替换 url 为你需要请求的 url
    req, err := http.NewRequest("GET", url, nil)
    if err != nil {
        return nil, err
    }

    // 使用 APP_ID, APP_SERVICE_SECRET 获取Basic Token Header
    req.Header.Set("Authorization", GetBasicAuthorization(APP_ID, APP_SERVICE_SECRET))

    client := &http.Client{}
    response, err := client.Do(req)
    if err != nil {
        return nil, err
    }
    defer resp.Body.Close()
    // ……其他处理
}

API 列表

创建 Allocation

在指定APP，指定启动配置和指定区域下分配一个服务。

基本信息

URL	Method	Content-Type
`https://multiverse.scaling.unity.cn/v1/allocation/games/{appId}/allocations`	POST	application/json

Request Body

{
  "uuid": "string",
  "profileId": "string",
  "regionId": "string",
  "envs": {
    "foo": "bar"
  },
  "allocationTTL": "1h"
}

Body参数

参数名	描述	类型	必填
uuid	用于识别该分配的UUID，这个UUID由服务开发者生成，用于之后调取服务分配的细节或移除分配，请注意：这必须是一个正确的UUID。	String	是
profileId	待分配服务所属的 profileId	String	是
regionId	待分配服务所属的 regionId	String	是
allocationTTL	服务器超时时长（默认1小时）	String	否
envs	传递给服务的变量	map<string, string>	否

注：此处 profileId 和 regionId，可在 UOS 网站上获取

profileId

regionId

输出示例

{
  "allocation": {
    "uuid": "string",
    "gameId": "string",
    "profileId": "string",
    "regionId": "string",
    "ip": "string",
    "gameServerPorts": [
      {
        "port": 9998,
        "protocol": "UDP",
        "name": "rest"
      }
    ],
    "gameServerName": "string",
    "createdAt": "2023-01-04T03:06:13.107Z",
    "createdByUser": "string",
    "modifiedAt": "2023-01-04T03:06:13.107Z",
    "modifiedByUser": "string",
    "fulfilledAt": "2023-01-04T03:06:13.107Z",
    "deletedAt": "2023-01-04T03:06:13.107Z",
    "deletedByUser": "string",
    "status": "string",
    "msg": "string",
    "allocationTTL": "string",
    "profileName": "string",
    "regionName": "string"
  }
}

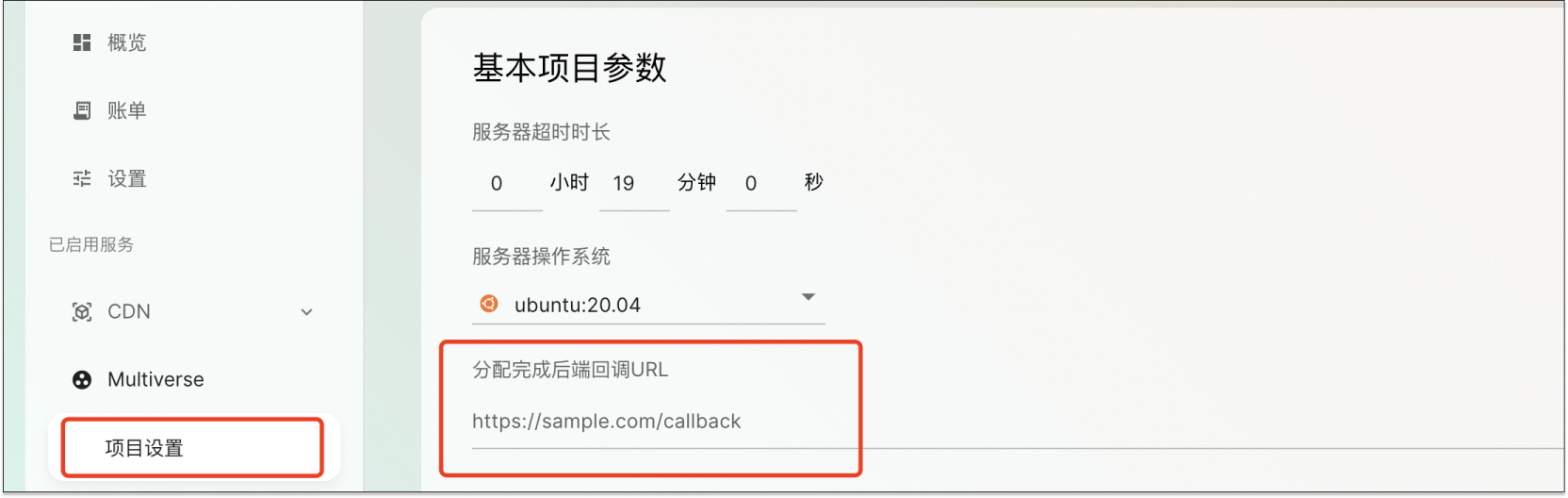

配置 Allocation callback url

可在创建/更新App的时候配置 allocationCallbackUrl (需支持 http post method)。

一旦你配置了allocationCallbackUrl，分配完成时，就会回调你配置的 allocationCallbackUrl, 将 allocation 信息发送过去。

{
  "description": {
    "uuid": "allocation uuid（用于识别该分配的UUID）",
    "ip": "分配的服务器ip地址",
    "gameServerPorts": "分配的服务器端口信息（格式：端口号/协议/用途）",
    "status": "分配状态，仅支持 allocated（成功）或 failed（失败）",
    "msg": "分配失败的原因（状态为 allocated 时可省略或为空）",
    "uosAppId": "UosApp ID（关联的应用标识）",
    "profileId": "启动配置ID（待分配服务所属的配置标识）",
    "regionId": "地域ID（待分配服务所属的地域标识）"
  },
  "uuid": "f7e74be7-1fd2-4f59-a84c-05fce8959a02",
  "ip": "101.43.43.8",
  "gameServerPorts": [
    "7275/UDP/http",
    "7352/TCP/grpc"
  ],
  "status": "...",
  "msg": "...",
  "uosAppId": "c5c1506c-a400-49a8-892a-bb63a4030427",
  "profileId": "7ed7d79a-7337-4079-93e2-ab0b8c60c153",
  "regionId": "27410428-5d54-41f8-bd52-faf2adddcda0"
}

查询 Allocation

根据请求参数获取指定的 Allocation 列表信息。

URL	Method
`https://multiverse.scaling.unity.cn/v1/allocation/games/{appId}/allocations/{uuid}`	GET

输出示例

{
  "allocation": {
    "uuid": "string",
    "gameId": "string",
    "profileId": "string",
    "regionId": "string",
    "ip": "string",
    "gameServerPorts": [
      {
        "port": 9998,
        "protocol": "UDP",
        "name": "rest"
      }
    ],
    "gameServerName": "string",
    "createdAt": "2023-05-08T10:00:51.797Z",
    "createdByUser": "string",
    "modifiedAt": "2023-05-08T10:00:51.797Z",
    "modifiedByUser": "string",
    "fulfilledAt": "2023-05-08T10:00:51.797Z",
    "deletedAt": "2023-05-08T10:00:51.797Z",
    "deletedByUser": "string",
    "status": "string",
    "msg": "string",
    "allocationTTL": "string",
    "regionName": "string",
    "profileName": "string"
  }
}

删除 Allocation

删除指定APP下的指定 Allocation。
基本信息

URL	Method
`https://multiverse.scaling.unity.cn/v1/allocation/games/{appId}/allocations/{uuid}`	DELETE

输出示例

{
  "deletedAt": "2023-01-03T13:59:15.540Z",
  "deletedByUser": "string"
}
